型号参数表
| 序号 | 型号 | 尺寸（mm） | 电压(V) | 功率（W） | 亮度(LX) | 建议选配控制器 | |||||
| W/G/B/R | W/G/B | R | W | G | B | R | |||||

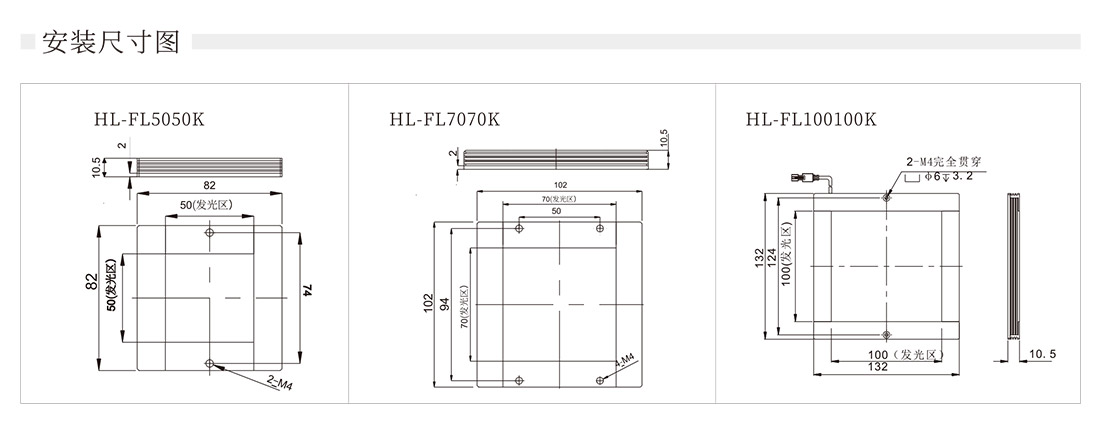

| 1 | 侧面导光光源 | HL-FL5050K | 发光区50×50 | 24 | 8.5 | 4.5 | 69K | 61K | 12K | 28K | HL-APC2424K HL-CPL2430D |
| 2 | HL-FL7070K | 发光区70×70 | 24 | 9.0 | 9.0 | 23K | 20K | 4K | 26K | ||
| 3 | HL-FL100100K | 发光区100×100 | 24 | 13.0 | 9.0 | 83K | 75K | 15K | 33K | HL-APC2430K HL-DPC2430K | |

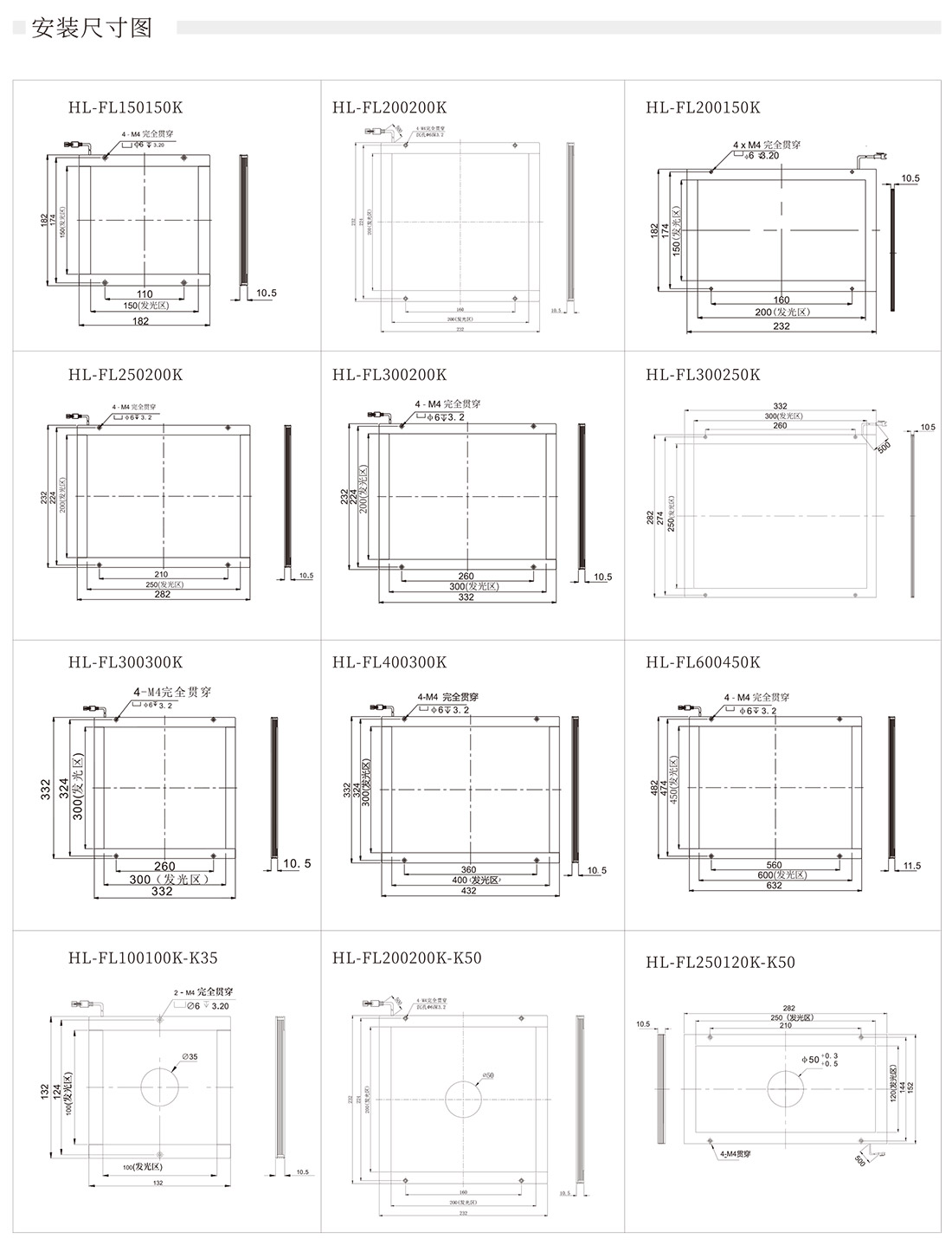

| 4 | HL-FL150150K | 发光区150×150 | 24 | 17.5 | 13.0 | 58K | 52K | 10K | 23K | ||
| 5 | HL-FL200200K | 发光区200×200 | 24 | 25.0 | 17.5 | 43K | 39K | 8K | 17K | ||
| 6 | HL-FL250150K | 发光区 250×150 | 24 | 26.0 | 22.0 | 52K | 47K | 9K | 21K | ||
| 7 | HL-FL250200K | 发光区250×200 | 24 | 26.0 | 22.0 | 41K | 38K | 9K | 11K | ||
| 8 | HL-FL300200C | 发光区300×200 | 24 | 27.0 | 27.0 | 36K | 28K | 6K | 10K | HL-APC2460C HL-DPC2465D HL-MDPC2480 | |
| 9 | HL-FL300250K | 发光区300×250 | 24 | 31.0 | 22.0 | 29K | 23K | 6K | 9K | ||
| 10 | HL-FL300300K | 发光区300×300 | 24 | 31.0 | 22.0 | 21K | 19K | 4K | 8K | ||
| 11 | HL-FL400300C | 发光区400×300 | 24 | 36.0 | 36.0 | 28K | 25K | 5K | 11K | ||
| 12 | HL-FL600450C | 发光区600×450 | 24 | 54.0 | 54.0 | 13K | 12K | 2K | 5K | HL-APC24120C | |
| 13 | 开孔侧面导光光源 | HL-FL100100K-K35 | 发光区 100×100 开孔35 | 24 | 12.5 | 12.5 | 76K | 68K | 13K | 30K | HL-APC2430K HL-DPC2430K |
| 14 | HL-FL200200K-K50 | 发光区 200×200 开孔50 | 24 | 20.5 | 19.5 | 36K | 33K | 7K | 9K | ||

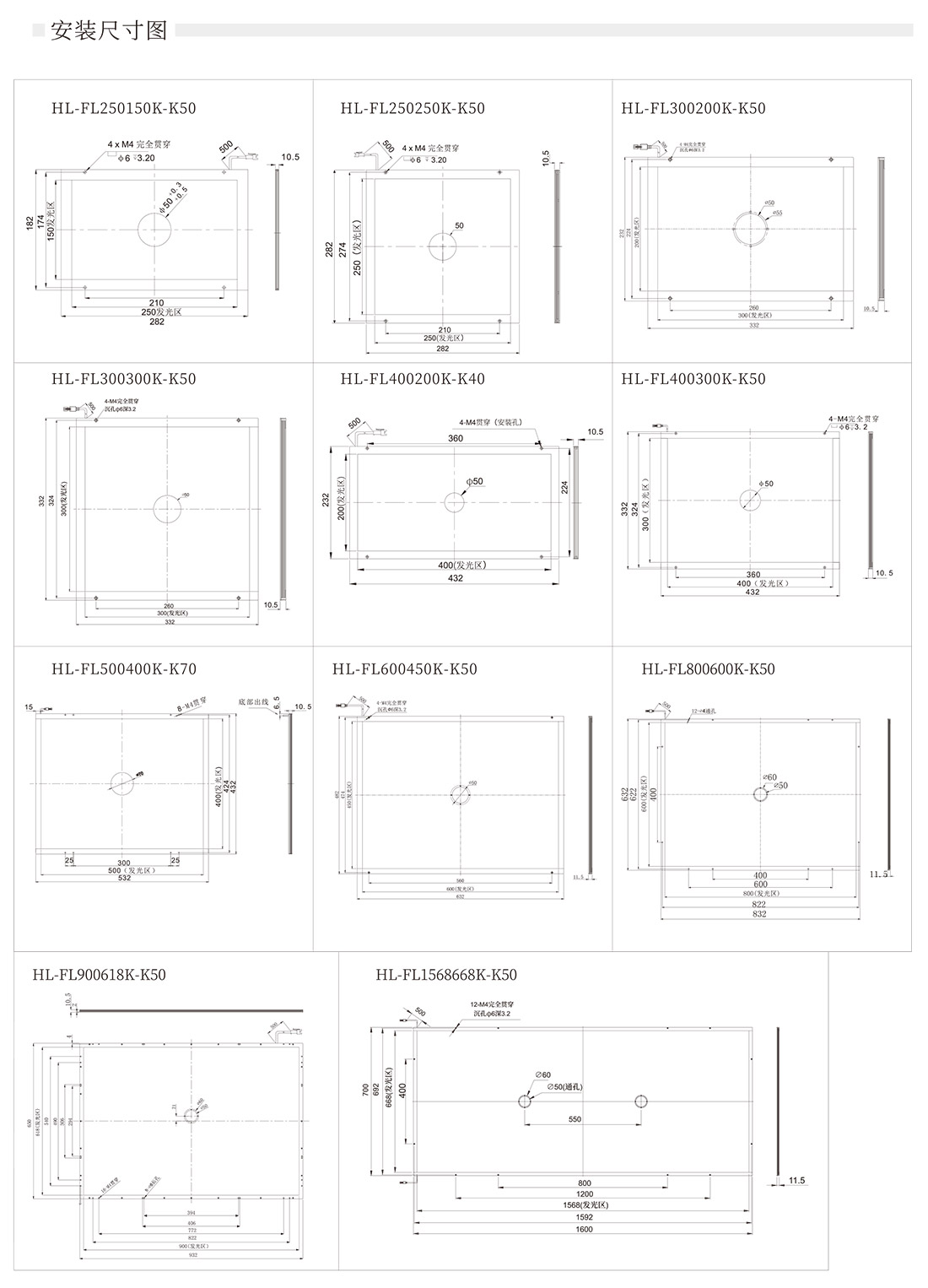

| 15 | HL-FL250120K-K50 | 发光区 250×120 开孔50 | 24 | 26.0 | 22.0 | 45K | 41K | 8K | 18K | ||
| 16 | HL-FL250150K-K50 | 发光区250×150 开孔50 | 24 | 26.0 | 22.0 | 37K | 33K | 7K | 16K | ||
| 17 | HL-FL250250K-K50 | 发光区250×250 开孔50 | 24 | 26.0 | 22.0 | 33K | 30K | 6K | 13K | ||

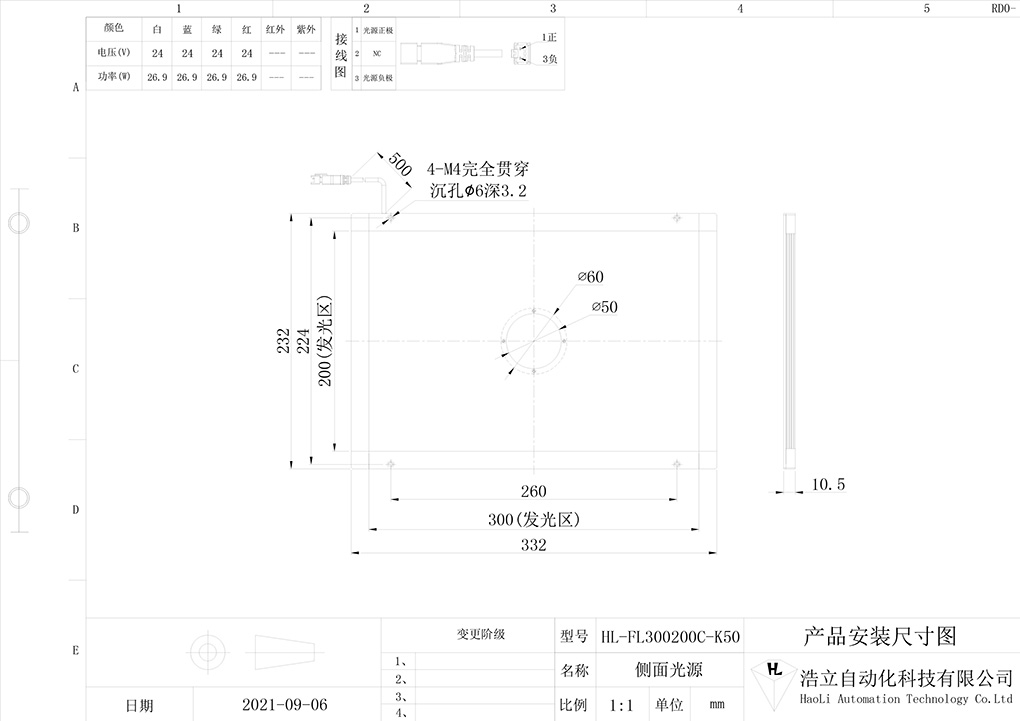

| 18 | HL-FL300200C-K50 | 发光区300×200 开孔50 | 24 | 27.0 | 27.0 | 35K | 32K | 6K | 9K | HL-APC2460C HL-DPC2465D HL-MDPC2480 | |
| 19 | HL-FL300300K-K50 | 发光区300×300 开孔50 | 24 | 31.0 | 22.0 | 26K | 23K | 5K | 10K | ||
| 20 | HL-FL400200K-K40 | 发光区400×200 开孔40 | 24 | 43.5 | 35.0 | 40K | 36K | 7K | 16K | ||
| 21 | HL-FL400300C-K50 | 发光区400×300 开孔50 | 24 | 36.0 | 36.0 | 33K | 30K | 6K | 13K | ||
| 22 | HL-FL500400K-K70 | 发光区500×400 开孔70 | 24 | 52.0 | 43.0 | 20K | 18K | 4K | 8K | HL-APC24120C HL-DPC24125D | |
| 23 | HL-FL600450C-K50 | 发光区600×450 开孔50 | 24 | 57.5 | 50.0 | 16K | 14K | 3K | 6K | ||
| 24 | HL-FL800600K-K50 | 发光区800×600 开孔50 | 24 | 74.5 | 65.0 | 9K | 8K | 2K | 4K | ||
| 25 | HL-FL900618K-K50 | 发光区900×618 开孔50 | 24 | 51.0 | 45.0 | 11K | 9K | 2K | 4K | ||
| 26 | HL-FL1568668K-K50 | 发光区1568×668 开孔50 | 24 | 151.0 | 120.0 | 8K | 7K | 2K | 3K | HL-HDPC24500P | |
